Basic Info.
Model NO. | JSD-01 | Function | Flash Alarm Signals | |
Certification | CE,RoHS,CCC | Housing Material | Metal Shell | |
Light Source | LED | Patterns | Other | |
Mask Specification | Other | Transport Package | Carton | |
Specification | 50*17*11.5cm | Trademark | CHAMP SHINE | |
Origin | China | HS Code | 8530800000 |
Packaging & Delivery
Package Size | 50.00cm*17.00cm*11.50cm |
Package Gross Weight | 25.000kg |
Product Description

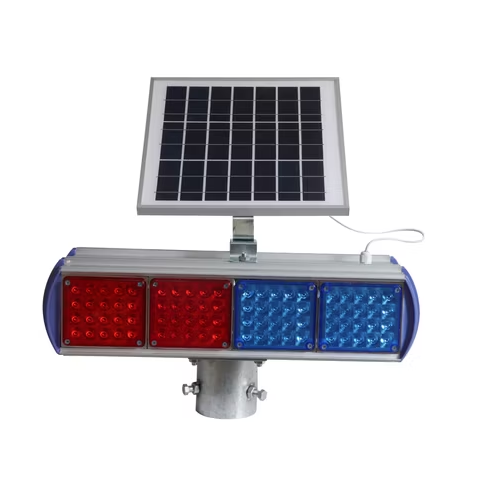

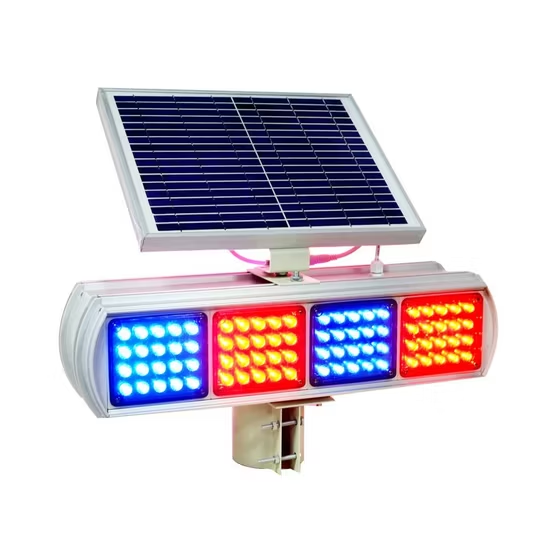

LED Strobe Alarm Signals Traffic Warning t Solar Road Barricade Lamp Solar Traffic LED Strobe Lamp
HIGH QUALITY SOLAR PANEL
GOOD LIGHT ENERGY CONVERSION EFFECT,RAINPROOF AND DUSTPROOF FAST CHARGING,ENERGY SAVING AND ENVIRONMENTAL PROTECTION
STRONG AND DURABLE,EXQUISITE TECHNOLOGY TO ENSURE TRAFFIC SAFETY AND SMOOTH,ENVIRONMENTALLY FRIENDLY MATERIAL QUALITY ASSURANCE
Housing Material | PC&Aluminum Cover |
Solar panel | 18V,10W single crystalline silicon solar cell,battery life≥15 years |
Battery | 12V,7AH Colloid and Maintenance Free Battery DIN |
Lighting unit | Double-faced,4 group each side,8 groups in total |
Amount of led | 30/unit(20,12/unit optional) |
Wavelength of led | 460±5nm(blue),625±5nm(red) |
Brightness of one led | 5000~8000mcd |
Normal life of led | ≥100000 hours |
Rate of system | ≤10W |
Work mode | 24hrs/day |
Strobe mode | Light flash red and blue,strobe flash,flash,recording light,explosion-flashing etc |
Flash frequency | 2Hz,120 times/min, can be customized |
Duty Ratio | 1/3 |
Visual range | ≥1000m(at night) |
Operating Temperature | -35℃~75℃ |
Operating Humidity | ≤95% |
Working time | can work over 120 hours or 6 rainy days after fully charged |
IP Grade | IP54 |
Standard | GB14887-2003 China, can be customized |
Feature and Usage
Advantage:
1.Simple to install. No need external power, no need wiring.
2.Energy saving. Low-power, solar cell, low cost
3.Environmental. No harmful substance, no pollutant.
4.Sturdy and durable. PC & Aluminum Cover, shock resistance, anti-aging, anti-corrosion
5.Stable performance. Use America ATMEL single ship to protect circuit
6.Long service life. Led ≥100000 hours, solar cell ≥15 years
7.Long working time.It can work over 120 hours or 6 rainy days after fully charged
8.Good warning function. LED chips imported from Taiwan to achieve high quality warning
Smart controller:
1.Automatic identification the 12V or 24V system
2.Defense of the charge protection. prevent electricity of battery to solar panel
3.Overcharge protection. prevent solar panel to overcharge battery
4.Over discharge protection. prevent a over discharge with the battery
5.Overload protection. it will turn off by itself when the electricity reach a 1.5 times of normal, and then work again about 1~2 mins later
6.Temperature correction. it will modify the charge and discharge when there is a change of the temperature the battery
7.Recovery Interval: avoid its work shaking by the utomatic-restoration characteristic of battery.
8.Other protection. lightning protection, prevent the reverse connection etc
