Basic Info.
Model NO. | XX-STRS001 | Reflectors | LED | |
Number of Reflective | Double-Side | Certification | CE,RoHS | |
Transport Package | Carton | Specification | 105*105*23mm | |
Trademark | Champ shine | Origin | China | |
HS Code | 8530800000 | Production Capacity | 5000Opictures/Month |

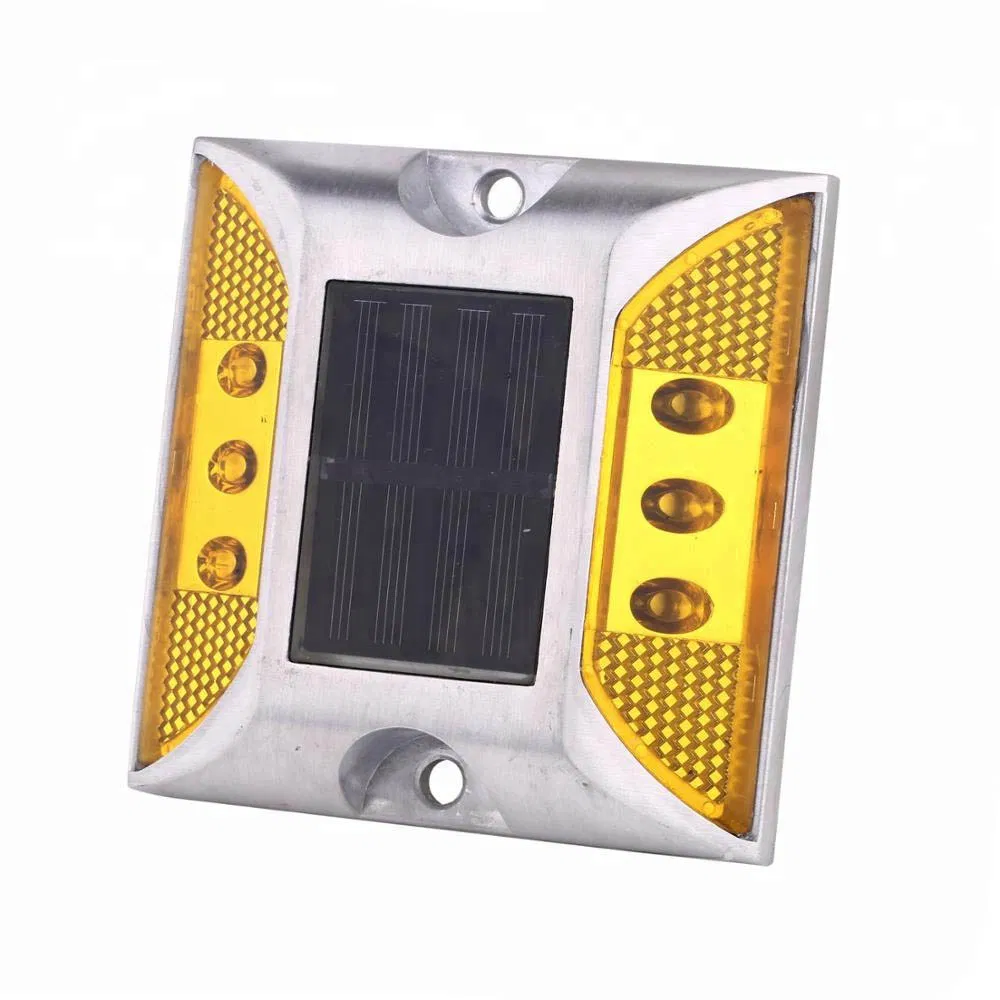

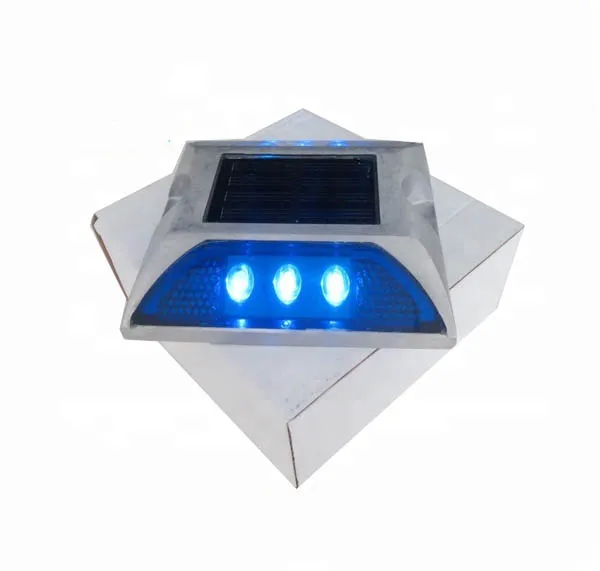

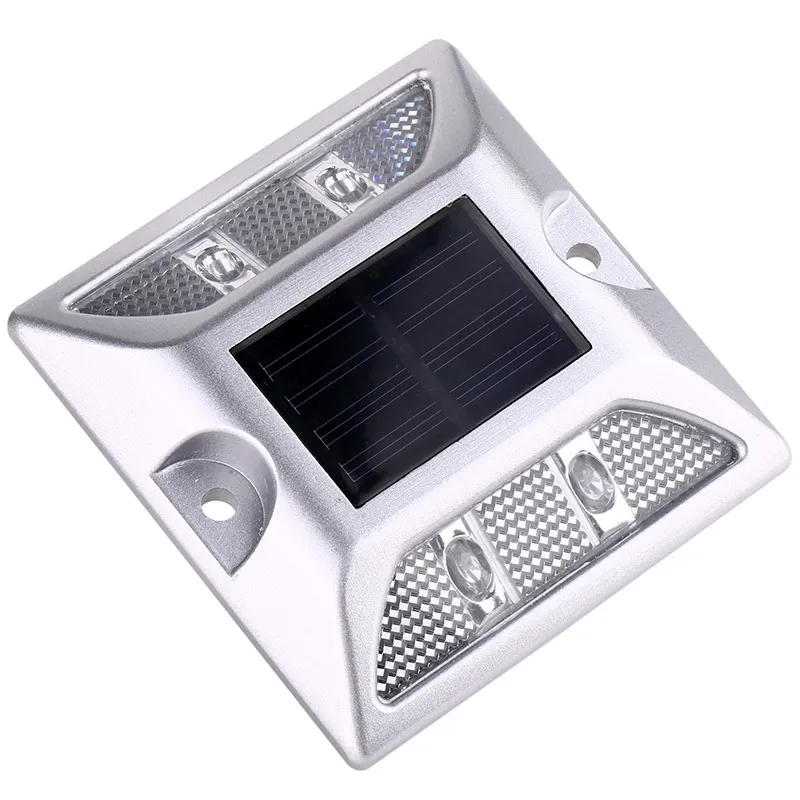

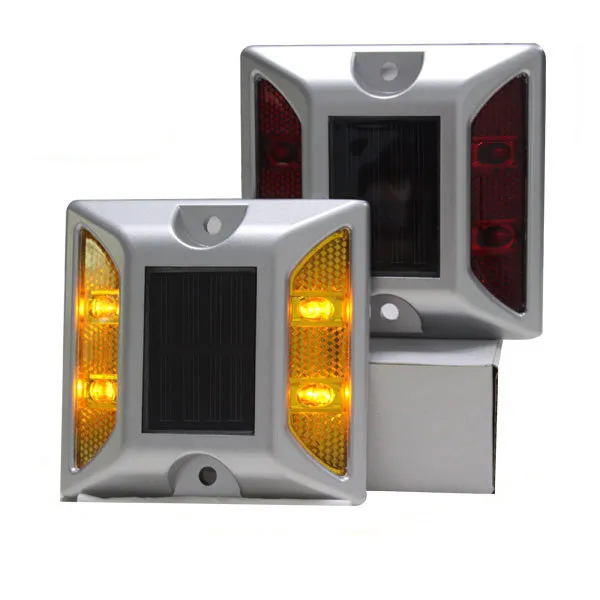

Solar road stud
The aluminum frame special design makes the solar panels and reflectors get better protection, which increases the life span. The special mix glue can protect reflectors as well as make the compression resistance ability more higher. The small magnet switch makes the solar stud can extend the using of battery. Owning these advantages of this Solar Alu (shock resistence, waterproofing, and good ability of sunlight absorption), it can be installed in some places with poor sunlight, many rain days, and a lot of heavy vehicles.
It is widely used in the European Union, the United States and other countries.
This product not only features the safe property, also beautiful apperance. At night, it looks like a necklace to dress up a city and a road.
1.Material: | Acrylic Reflector And Aluminum frame with mix epoxy filler |
2.Visual distance: | Over 1500m |
3.Product size: | 103x113x22mm |
4.Lighting Mode: | Flashing |
5.LED: | φ5mm,one-way 2 or 3pcs,two-way 4 or 6pcs |
6.LED Color range: | Yellow,red,white,green,blue |
7.Reflective Lens color range: | Yellow,red,white |
8.Power Supply: | 1.2V,600mah Nl-MH battery |
9.Working time after fully charged: | Flashing≥70hrs |
10.Compression resistance: | Over 30 tons |
11.Packaging &Delivery | Packaging Details:Opp Poly bag/inner box/ctn |
Item No.: XX-SR-804
Size: 105*105*23MM
Material: Die-cast aluminum shell
Solar panel: 2V/100MA
Battery: 1.2V/1200MAH Ni-MH battery
Display mode: Flashing or always on
Vorking environment: -20℃~+80℃
Display color: white yellow red green blue optional
Waterproof: IP68
Packing size: 38*27*28CM;60pcs/carton
Features and parameters of solar road stud:
Solar road stud is an environmentally friendly road stud light.It can absorb sunlight through solar cells during the day,convert solar energy into electrical energy and store it in the energy storage device(battery or capacitor),and automatically convert the electrical energy in the energy storage device into light energy through photoelectric switch control at night or when the light is relatively dark.The lights of various colors are emitted by the light-emitting components,which can be used to draw the outline of the road on the road to guide the driver in the correct direction;it can also be used as a decoration in villas or gardens.

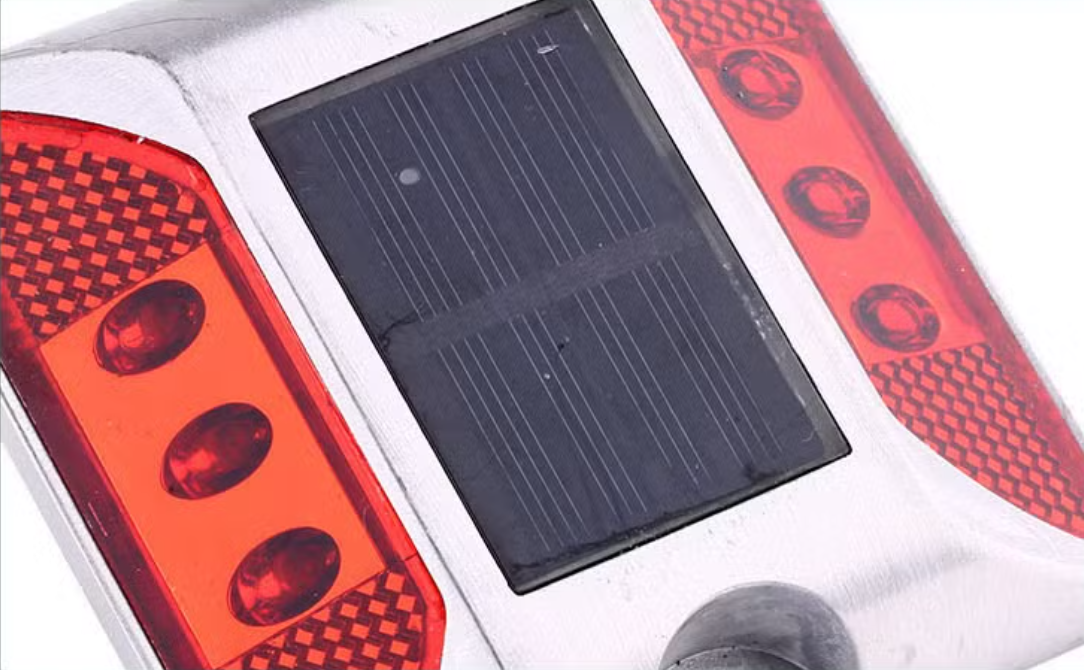

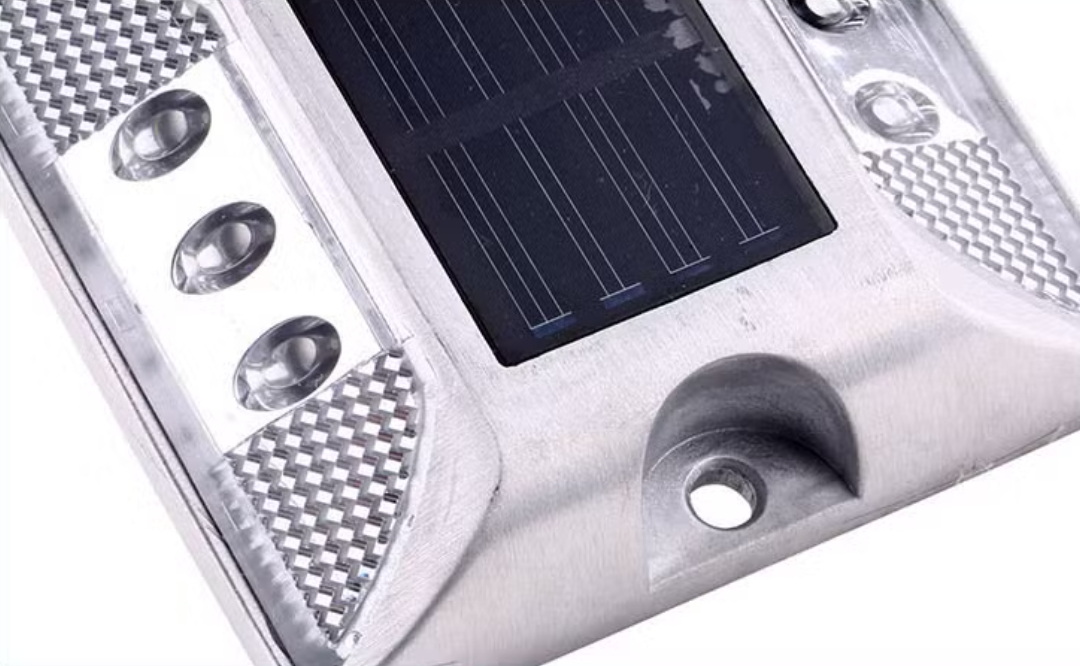

01-High quality crystal silicon board
Monocrystalline silicon solar panels have high conversion rate, neat arrangement,and high charging efficiency.

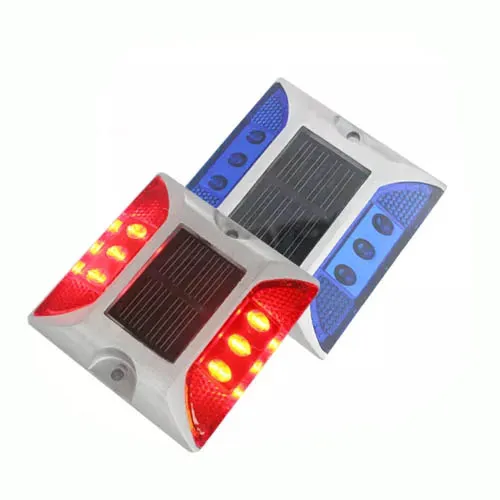

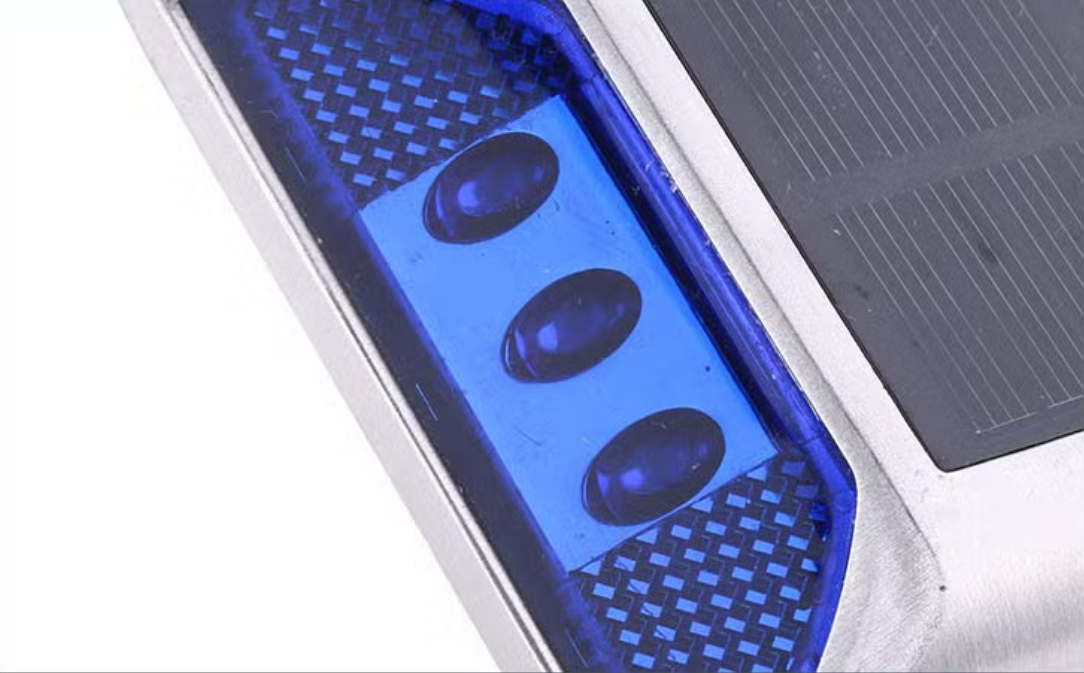

02-Multi-LED lamp combination
Products use sunlight,use LEDs as light sources,energy saving, environmental protection,and easy installation

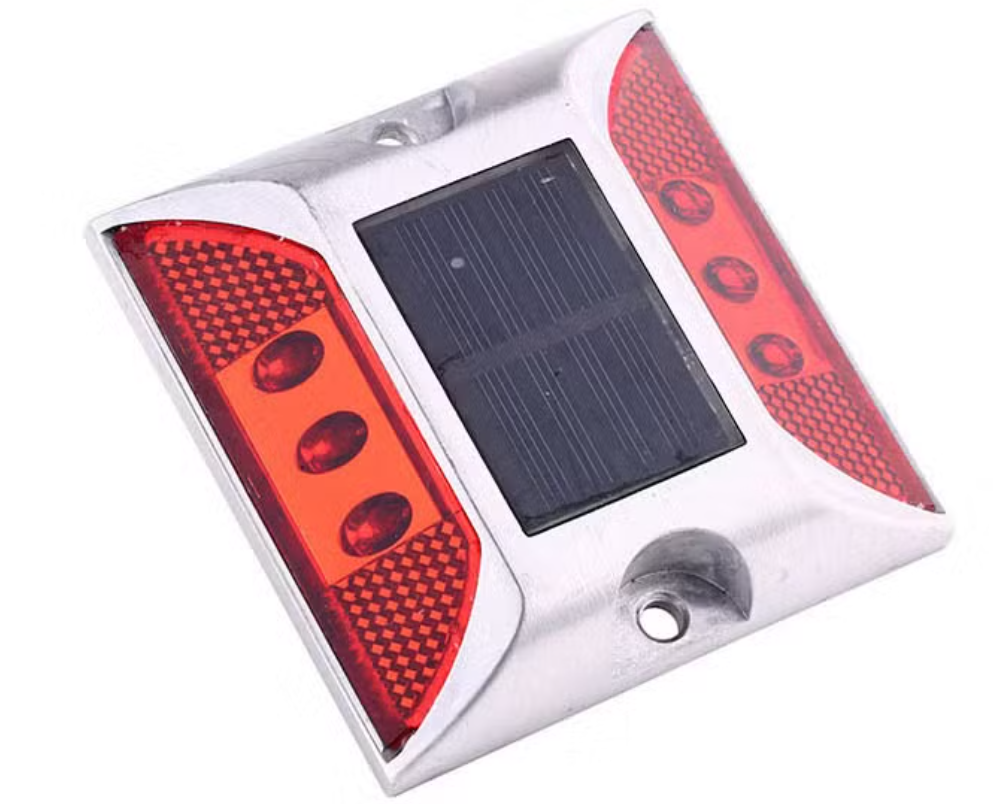

03-Cast aluminum shell is anti-corrosion
Water-resistant,oil-resistant,corrosion-resistant,bright Color, reasonable shape,beautify the city road
